Military Rhib

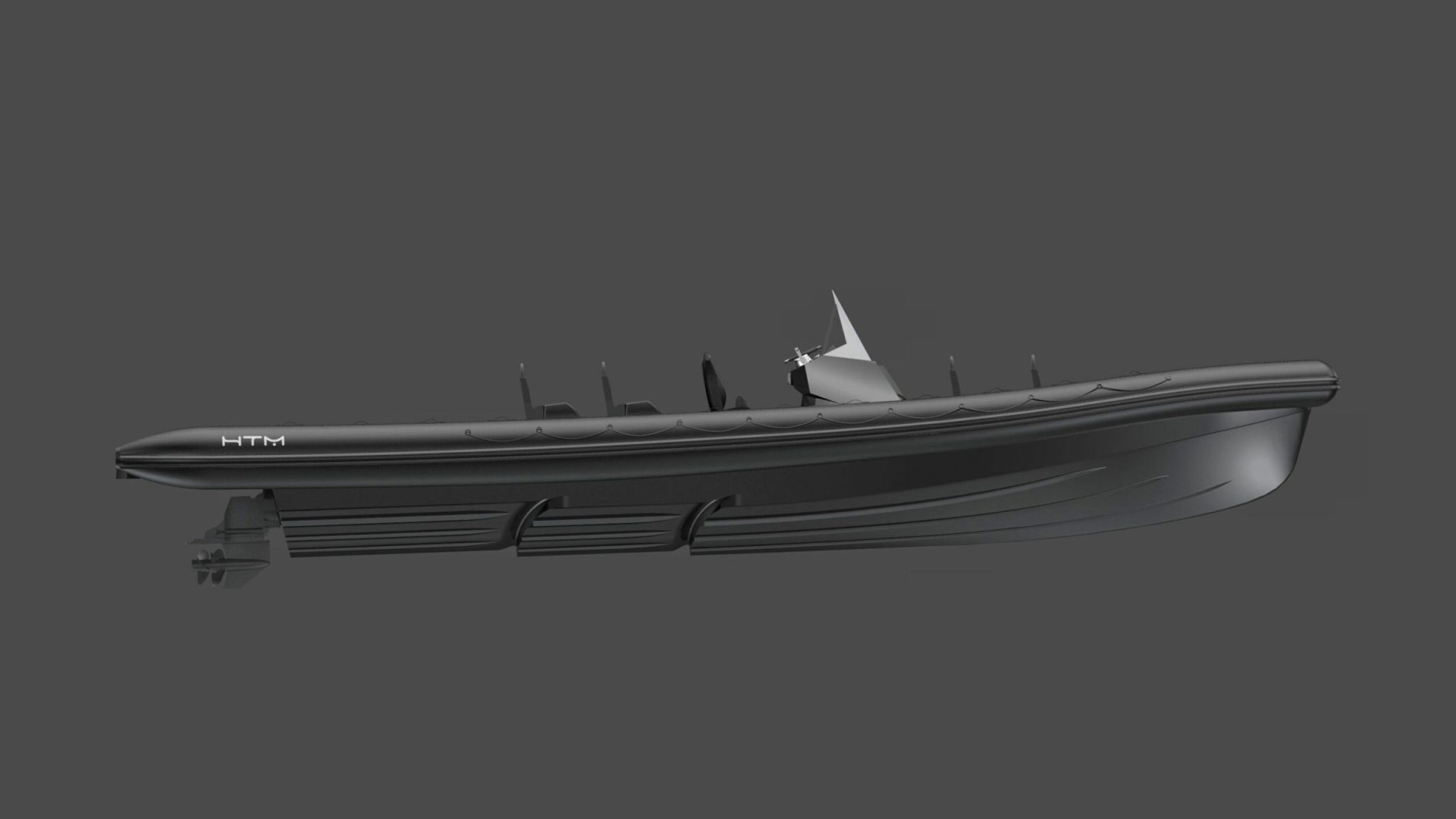

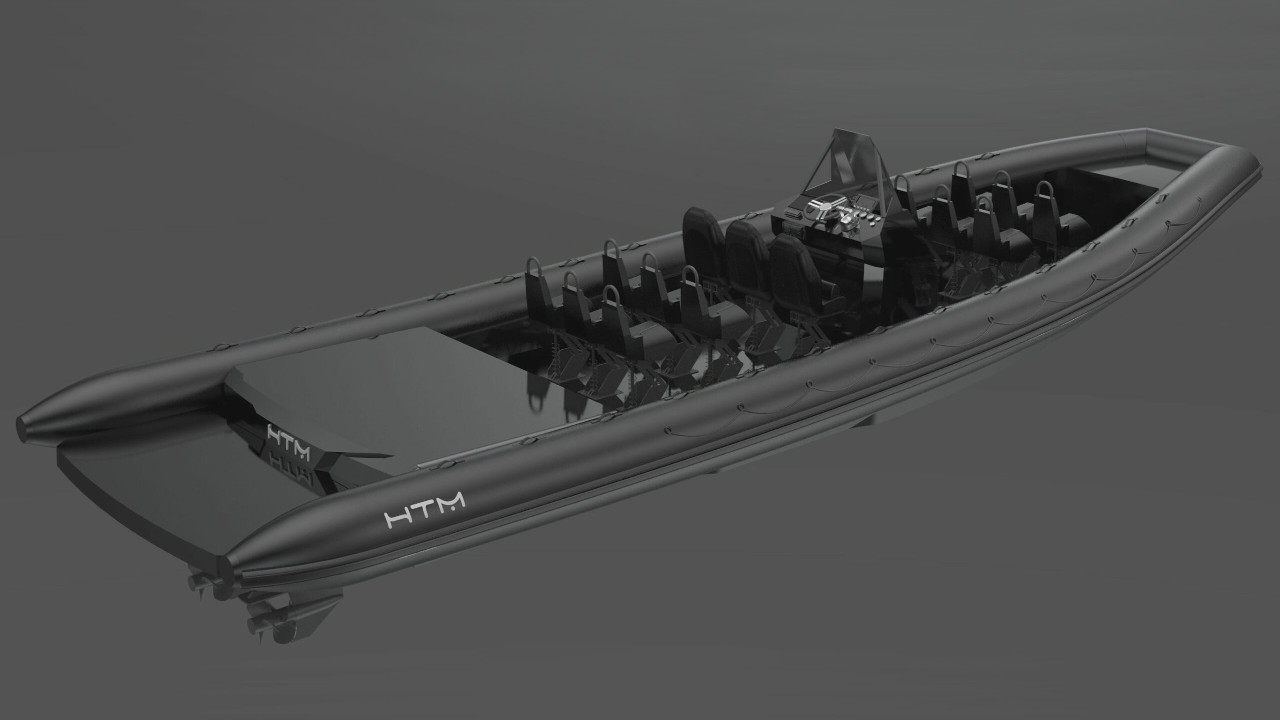

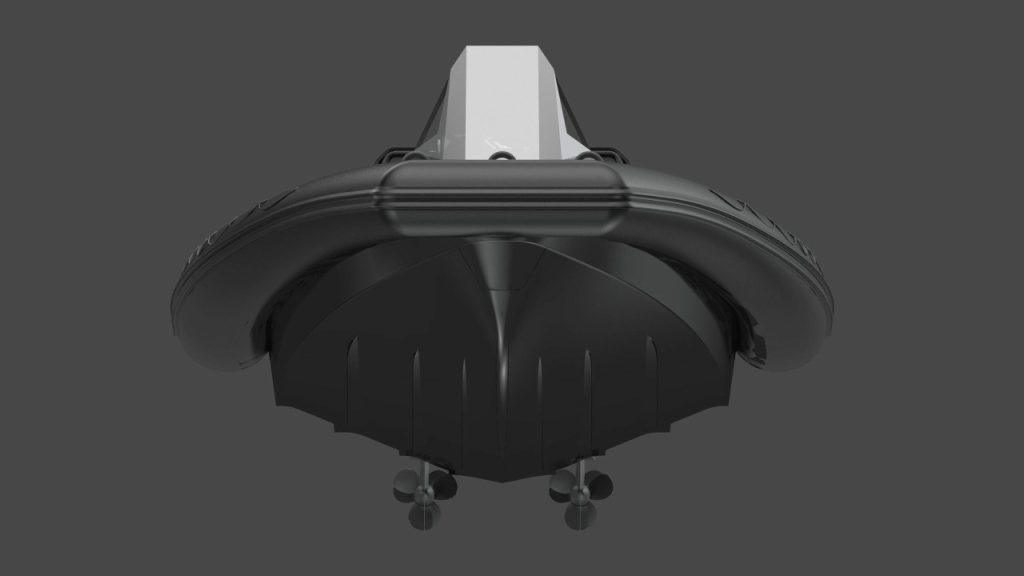

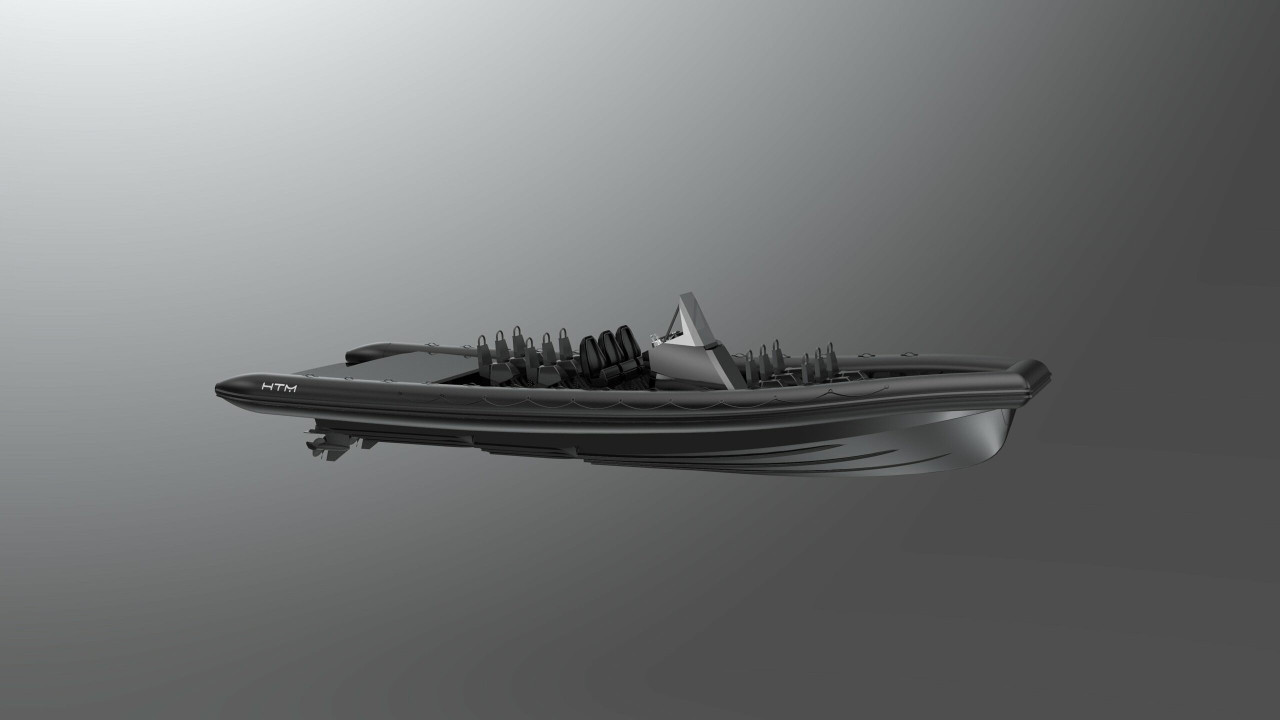

HTM 380 EFB
TECHNICAL DATA
Certification length: 9.99 m
Total Leight (LoA): 11.20 m
Maximum Beam: 3.55 m
Tube Diameter: 0.60 meters
Tube: 6 Compartment Tubes
Boat Design CE: B
Number of People: 15
Material: “E” Glass + Kevlar with Vinylester Resin in Vacuum System
Engine Type: 2 x FPT F1 230
Transmissions: 2 X BRAVO XR3
Fuel Tank Capacity: 420 liters
Total Leight (LoA): 11.20 m
Maximum Beam: 3.55 m
Tube Diameter: 0.60 meters
Tube: 6 Compartment Tubes
Boat Design CE: B
Number of People: 15
Material: “E” Glass + Kevlar with Vinylester Resin in Vacuum System
Engine Type: 2 x FPT F1 230
Transmissions: 2 X BRAVO XR3
Fuel Tank Capacity: 420 liters
WEIGHTS WITH MOTORIZATION
With 2 x 230 FPT F1 Diesel XR 3 BRAVO: Approximately 5500 kg
With 2 x 270 Mercruiser Diesel XR 3 BRAVO: Approximately 5600 kg
With 2 x 370 Nanni Diesel XR 3 BRAVO: Approximately 6000 kg
With 2 x 270 Mercruiser Diesel XR 3 BRAVO: Approximately 5600 kg
With 2 x 370 Nanni Diesel XR 3 BRAVO: Approximately 6000 kg
PERFORMANCE WITH 4 PERSONS AND FULL FUEL
With 2 x 230 FPT F1 Diesel XR 3 BRAVO: Over 35 knots
With 2 x 270 Mercruiser Diesel XR 3 BRAVO: Over 40 knots
With 2 x 370 Nanni Diesel XR 3 BRAVO: Over 45 knots
With 2 x 270 Mercruiser Diesel XR 3 BRAVO: Over 40 knots
With 2 x 370 Nanni Diesel XR 3 BRAVO: Over 45 knots

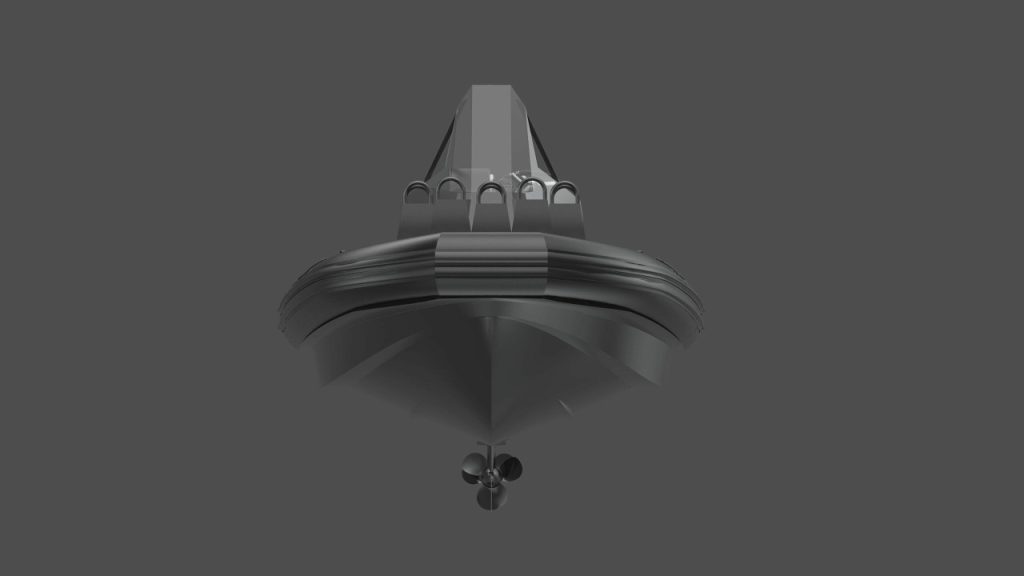

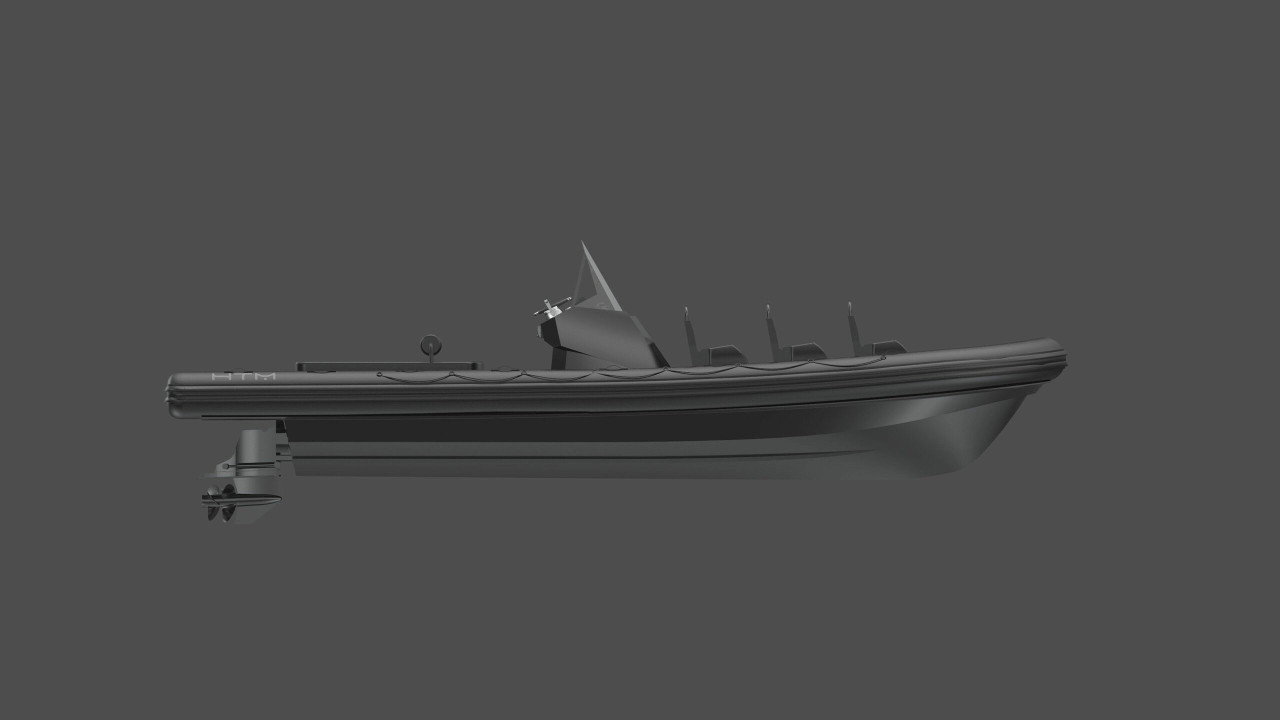

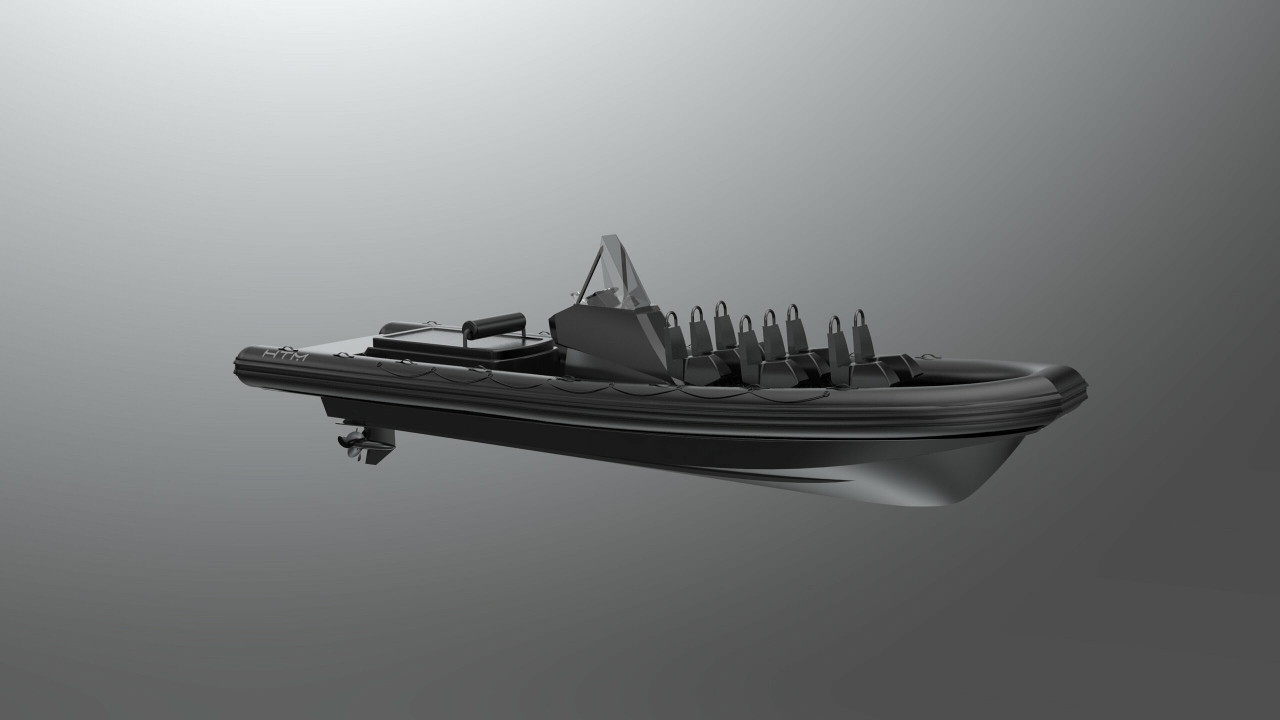

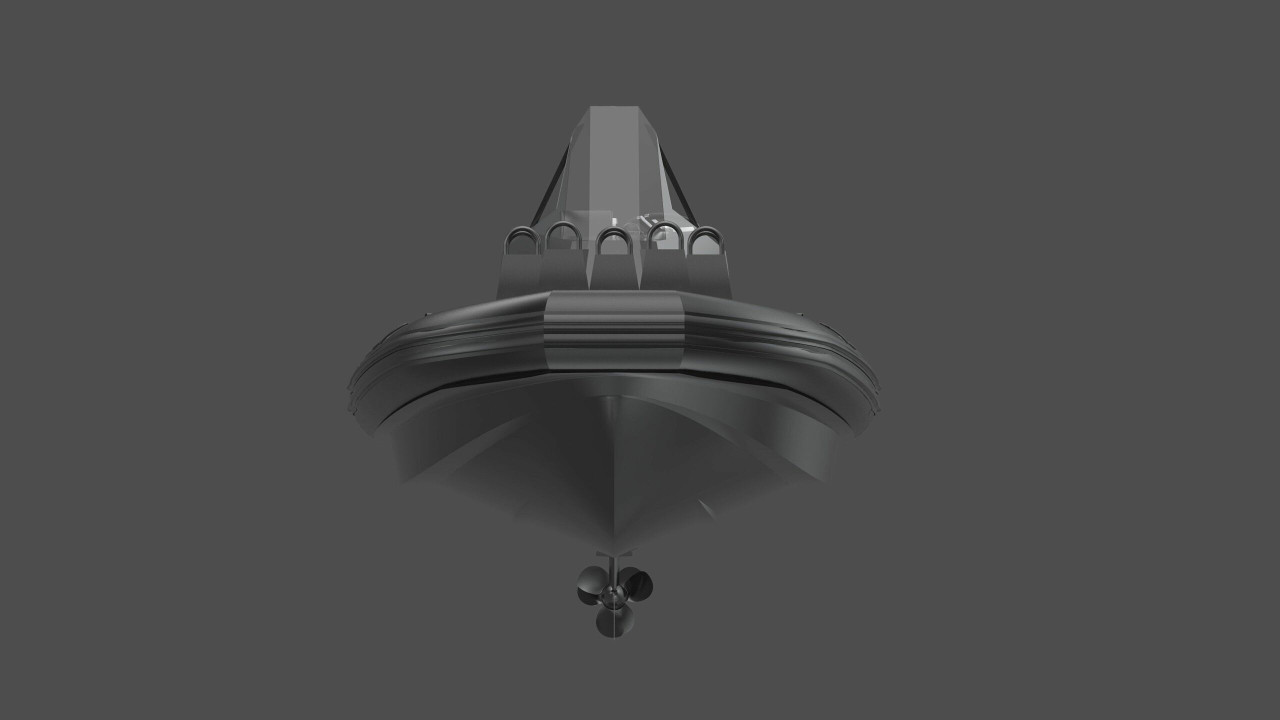

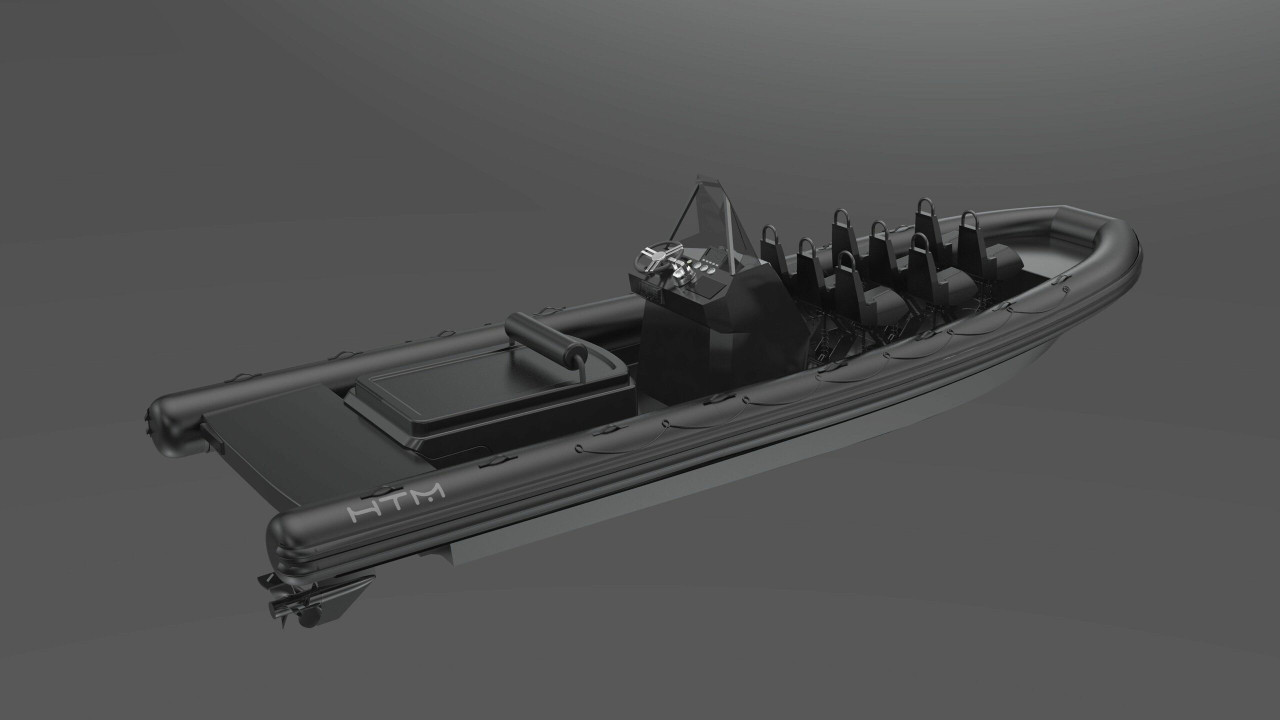

HTM 275 EFB
TECHNICAL DATA
Certification length: 8.35 m
Total Leight (LoA): 8.35 m
Maximum Beam: 2.60 m
Tube Diameter: 0.45 meters
Tube: 6 Compartment Tubes
Boat Design CE: B
Number of People: 12
Material: “E” Glass + Kevlar with Vinylester Resin in Vacuum System
Engine Type: 1 x FPT F1 230
Fuel Tank Capacity: 220 liters
Total Leight (LoA): 8.35 m
Maximum Beam: 2.60 m
Tube Diameter: 0.45 meters
Tube: 6 Compartment Tubes
Boat Design CE: B
Number of People: 12
Material: “E” Glass + Kevlar with Vinylester Resin in Vacuum System
Engine Type: 1 x FPT F1 230
Fuel Tank Capacity: 220 liters
WEIGHTS WITH MOTORIZATION
With 1 x 230 FPT F1 Diesel XR 3 BRAVO: Approximately 2550 kg
With 1 x 270 Mercruiser Diesel XR 3 BRAVO: Approximately 2600 kg
With 1 x 370 Nanni Diesel XR 3 BRAVO: Approximately 2800 kg
With 1 x 270 Mercruiser Diesel XR 3 BRAVO: Approximately 2600 kg
With 1 x 370 Nanni Diesel XR 3 BRAVO: Approximately 2800 kg
PERFORMANCE WITH 4 PERSONS AND FULL FUEL
With 1 x 230 FPT F1 Diesel XR 3 BRAVO: Over 30 knots
With 1 x 270 Mercruiser Diesel XR 3 BRAVO: Over 35 knots
With 1 x 370 Nanni Diesel XR 3 BRAVO: Over 45 knots
With 1 x 270 Mercruiser Diesel XR 3 BRAVO: Over 35 knots
With 1 x 370 Nanni Diesel XR 3 BRAVO: Over 45 knots
HTM 265 FB
TECHNICAL DATA
Certification length: 8.00 m
Total Leight (LoA): 8.00 m
Maximum Beam: 2.60 m
Tube Diameter: 0.45 meters
Tube: 6 Compartment Tubes
Boat Design CE: B
Number of People: 12
Material: “E” Glass + Kevlar with Vinylester Resin in Vacuum System
Engine Type: 2 x MAERCURY F150
Fuel Tank Capacity: 2 X 200 liters
Total Leight (LoA): 8.00 m
Maximum Beam: 2.60 m
Tube Diameter: 0.45 meters
Tube: 6 Compartment Tubes
Boat Design CE: B
Number of People: 12
Material: “E” Glass + Kevlar with Vinylester Resin in Vacuum System
Engine Type: 2 x MAERCURY F150
Fuel Tank Capacity: 2 X 200 liters
WEIGHTS WITH MOTORIZATION
With 2 x 115 Mercury: Approximately 2000 kg
With 2 x 150 Mercury: Approximately 2250 kg
With 2 x 150 Mercury: Approximately 2250 kg
PERFORMANCE WITH 4 PERSONS AND FULL FUEL
With 2 x 115 Mercury: Over 35 knots
With 2 x 150 Mercury: Over 40 knots
With 2 x 150 Mercury: Over 40 knots
