Rescue

HTM 185 RESCUE

TECHNICAL DATA

Total Length (Loa): 5.70 m
Maximum Beam: 2.60 m
Maximum Height: 1.5 m
Boat Design CE: C / IMO
Tube Diameter: 0.50 meters
Number of People: (C 8 /IMO 5+1)
Material: "E" Glass, Kevlar reinforcements, and fire retardant resin
Technology: Sandwich construction for the deck; single skin for the hull and accessories
Engine Type: Diesel 144 Hp
Engine: STEYR SE 144 E 38 144 Hp SOLAS WATERJET PACKAGE | FLEXBALL Electronic Control |
Propulsion: ALAMARINE-JET AJ 185 JET
Fuel Capacity: approx. 80 liters
Weight (empty): approx. 1000 kg
Maximum Speed: 35 Kn
Cruising Speed: 30 Kn

HTM 240 RESCUE

TECHNICAL DATA

Total Length (Loa): 7.25 m
Maximum Beam: 2.60 m
Maximum Height: 1.65 m
Boat Design CE: B/C / IMO
Tube Diameter: 0.45 meters
Tube Volume: 1825 liters (64.42 cubic feet)
Number of People: (B10/C14/IMO 5+1)
Material: "E" Glass, Kevlar reinforcements, and fire retardant resin
Technology: Sandwich construction for the deck; single skin for the hull and accessories
Engine Type: Diesel 260 Hp (Optional from 230 to 370 Hp)
Engine: STEYR SE 266 E 40 260 Hp SOLAS WATERJET PACKAGE | FLEXBALL Electronic Control |
Propulsion: ALAMARINE-JET AJ 245 JET
Fuel Capacity: approx. 175 liters
Water Capacity: 39 liters
Weight (empty): approx. 2000 kg
Maximum Speed: 40 Kn
Cruising Speed: 32 Kn

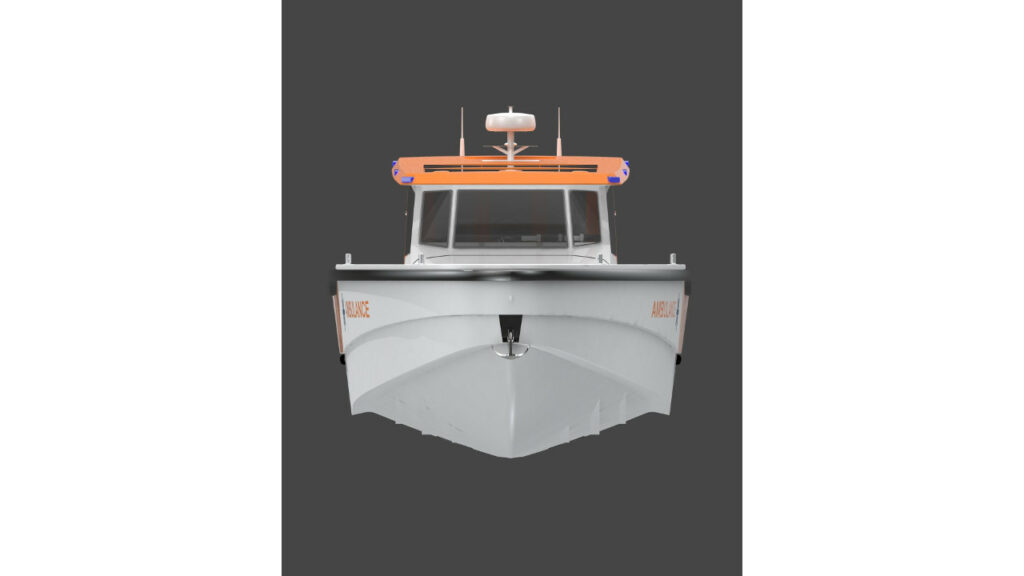

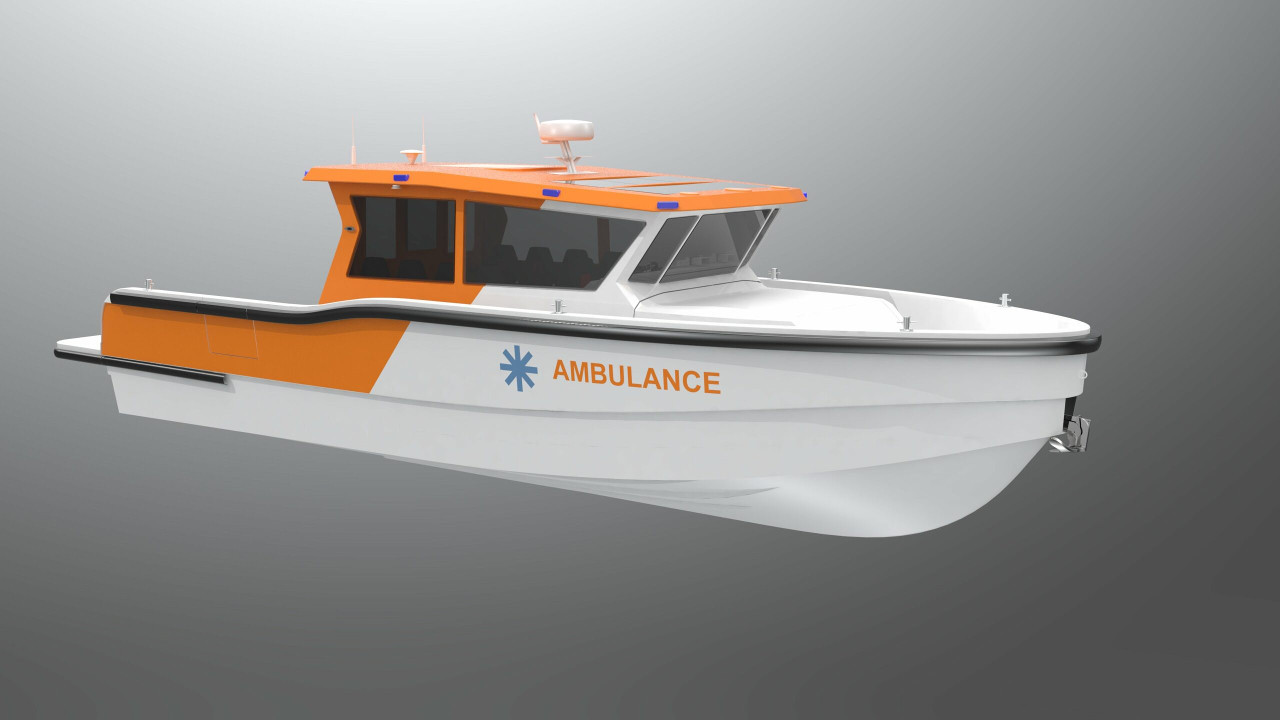

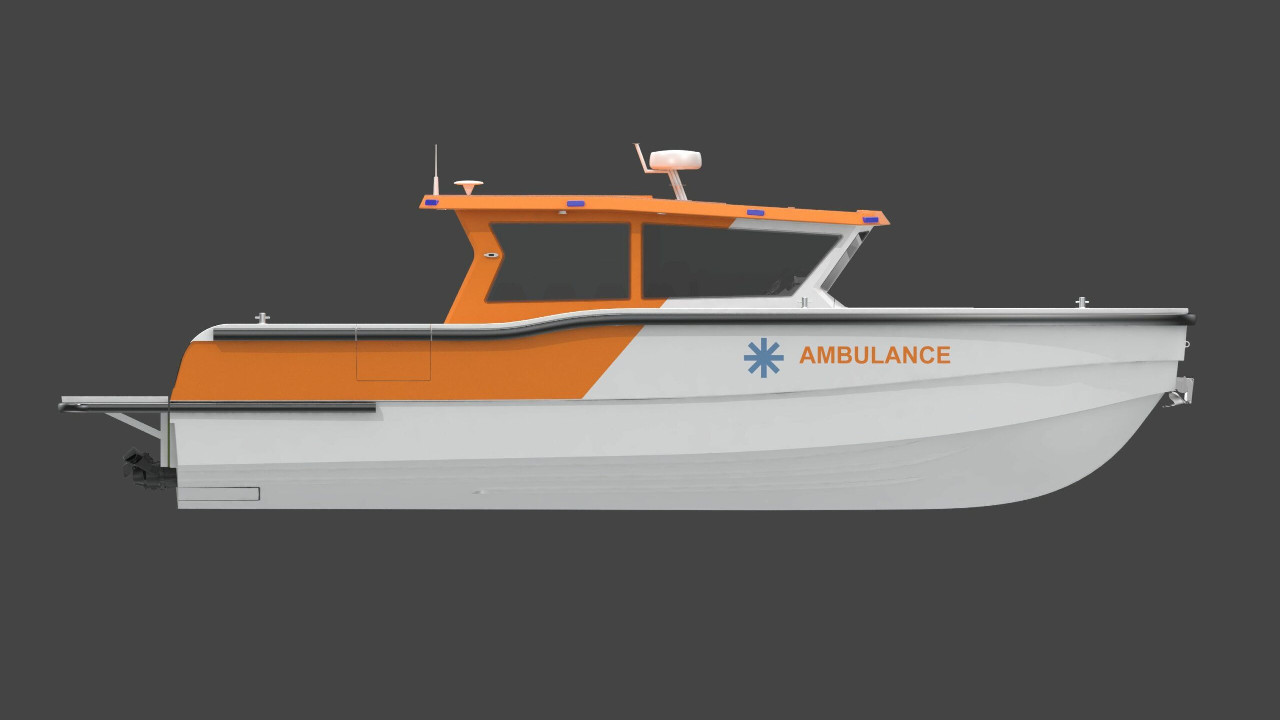

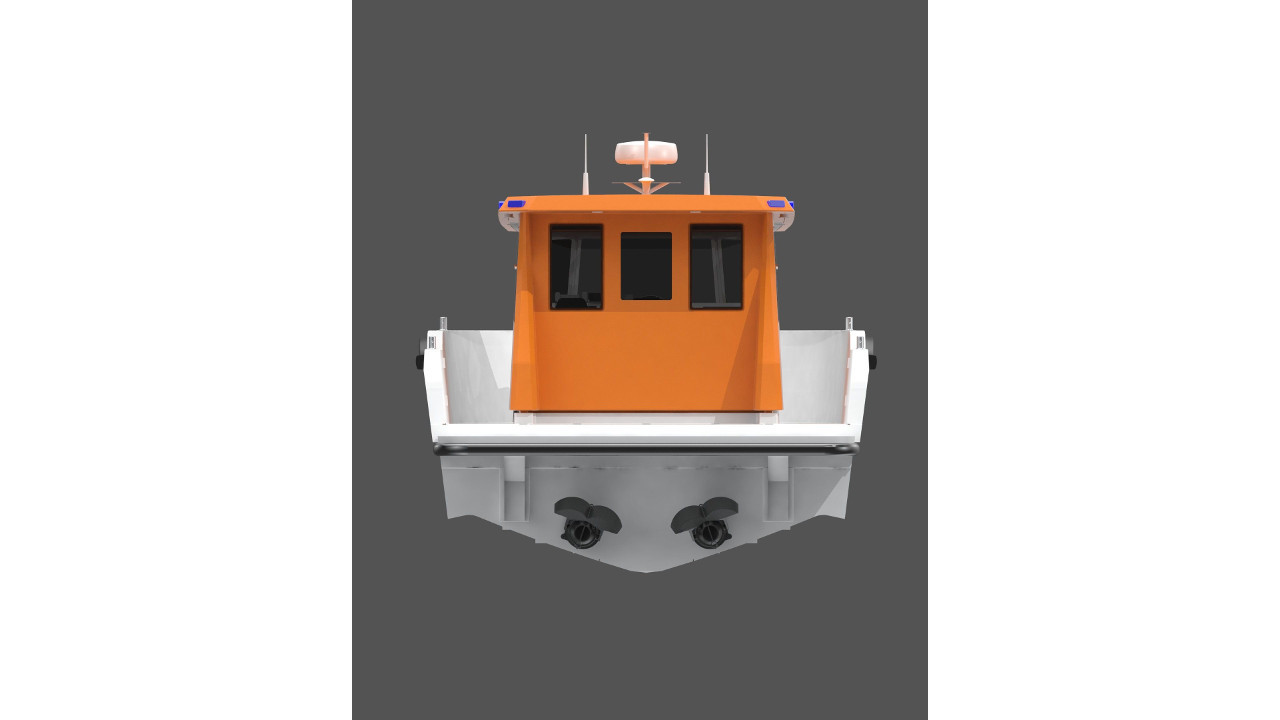

HTM 440 AMBULANCE

TECHNICAL DATA

Lunghezza di certificazione: 11,99 m
Lunghezza totale (LoA): 13,20 m
Larghezza massima: 4,55 m
Pescaggio: 0,70 m
Progetto Barca CE: B
Numero di persone: 12
Materiale: Vetroresina “E” + Kevlar con resina Vinilestere in sistema a vuoto
Tipo di motore: 2 x FPT N40 400
Trasmissioni: 2 x Alamarin-Jet 285 con sistema di manovra a joystick
Stabilizzatore giroscopico: 1 x Smartgyro 20
Generatore: 1 x 6 Kw
Aria condizionata: 2 X 16000 BTU
Riserva di carburante (motori principali): 2 x 450 litri
Riserva d'acqua: 1x 200 litri
Peso a vuoto: 10.500 Kg
Piattaforma di poppa: Idraulica
Prestazioni: 32 Kn a carico medio – 30 Kn a pieno carico
Telecamera termica: 1 x I-SMART
GPS: 1 x Lowrance 16 pollici
VHF: 1 x Lowrance

OPTIONAL

BUKH 2 x V8 500 con Alamarin Jet 285
FPT 2 x N67 550 con Alamarin Jet 340
FPT 2 x C9 650 con Alamarin Jet 340
